Stainless Steel Pipe and Tube

Pipe and tube orders must identify the size convention, production route, service standard, ends and examination rather than relying on diameter alone. In pressure piping, NPS and schedule commonly work with a dimensional standard; instrumentation, sanitary, heat-exchanger and mechanical tube are more often described by exact outside diameter and wall thickness. Do not convert between these systems casually. Name the product standard and dimensional basis so tolerances, heat treatment, length and test requirements can be evaluated under the correct document.

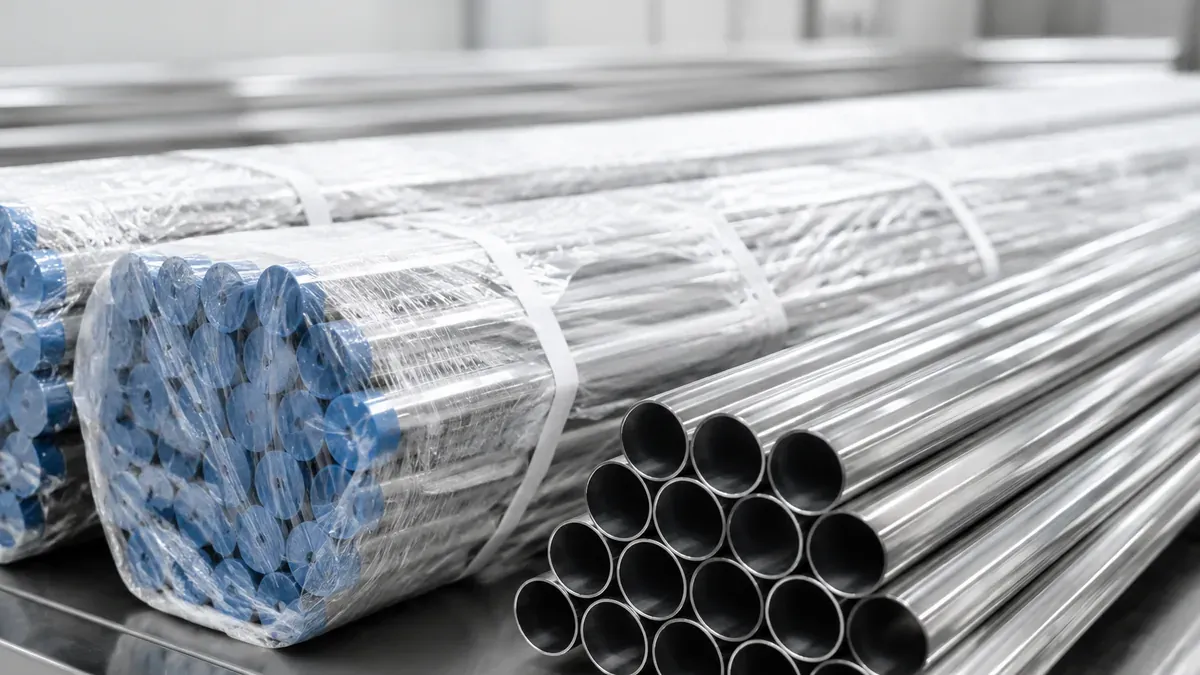

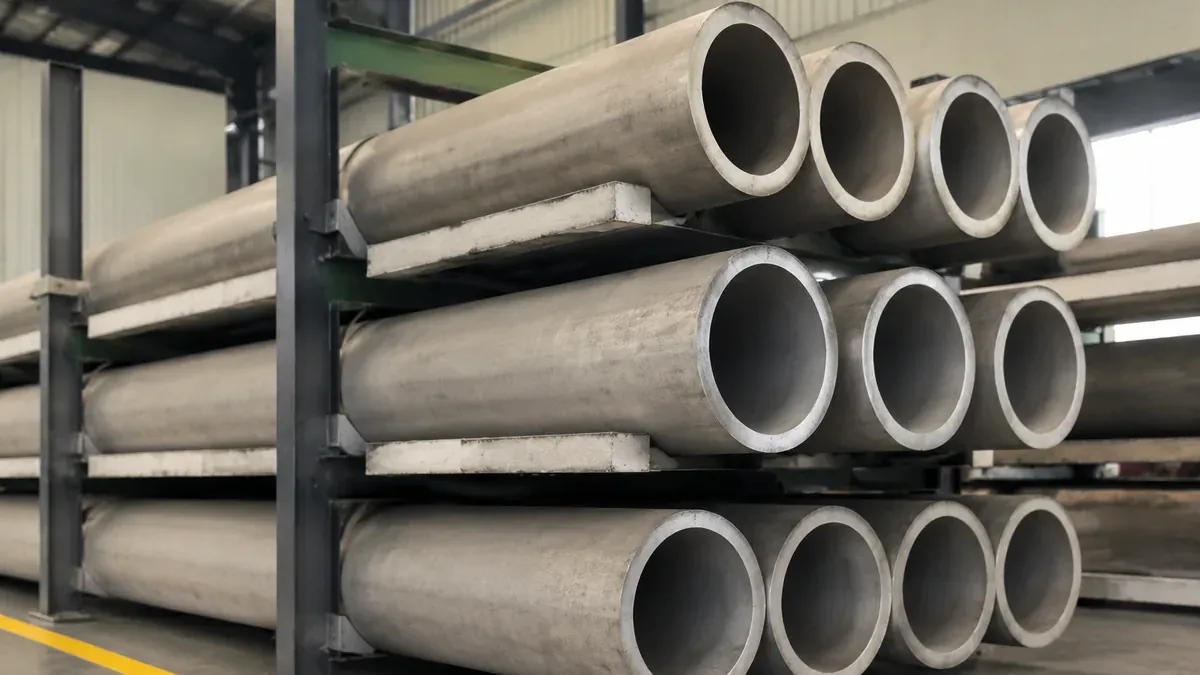

Seamless and welded are manufacturing routes, not complete quality grades. The application, purchased standard and inspection plan determine whether either route is acceptable. Welded pressure pipe, sanitary tube and decorative hollow section also have different weld, heat-treatment and surface requirements. For heat exchangers, the buyer may need tube length, straightness, ovality, wall tolerance and end condition tied to fabrication. For sanitary service, freeze ASTM A270 (or the project hygienic specification) separately from general-service A269 — connection geometry, internal finish or roughness, cleaning and protected ends need explicit acceptance language. Use the site ASTM A270 vs A269 sanitary tubing guide, pipe vs tube ordering guide and seamless vs welded A312 guide when writing the freeze lines.

Define ends before pricing any additional processing. Plain ends, ASME-style bevels, threads, grooves and sanitary connections require different dimensional checks and protection. If the tube will be bent, welded into a spool or cut to exact length, attach the relevant drawing and state whether post-processing heat treatment, pickling, passivation or finish restoration is required. Internal and external finish should be named separately where fluid cleanliness, weld accessibility or visible appearance matters; a general request for “polished pipe” does not establish an internal roughness criterion.

For Middle East and Southeast Asia export programs, send destination port, Incoterms preference, bundle length limits, end-cap and separator requirements, and climate packing notes with the RFQ. We quote supported bundles for long thin-wall tube, end caps for bevels and sanitary ends, and the packing method for the sea route. Name hydrostatic, eddy-current, ultrasonic, weld examination or PMI with report and witness points, and freeze certificate wording with the purchase-order wording examples and RFQ checklist. Contact sales through the contact / RFQ page once the size system, standard family and destination are clear.
